How to use a Haida Medical Skin stapler
HD/JS-HPF-09-A
Production license number: Jiangsu Food and Drug Administration Production License No. 20050021.
Registration No.: Jiangsu Food and Drug Administration approval No.20152651027
Product Technical Requirements Number: Jiangsu Food and Drug Administration approval No.20152651027
Disposable Skin stapler
Instructions for use
Please read the instructions for use carefully before use
I properties
A disposable skin stapler is a sterile hand-held manual, surgical instrument preloaded with non-bioabsorbable skin staples designed to approximate free edges of skin from an incision or wound. This stapler is a manually-powered device designed to mechanically deliver the staples; the staples are made of metal [e.g., stainless steel] and intended to be removed once the wound has sufficiently healed. This is a single-use device.
II Structure composition
The disposable skin stapler consists of a pusher (12Cr18Ni9/06Cr19Ni10), a housing (ABS), a handle (PA/ABS), and staples (022Cr17Ni12Mo2). According to the appearance and number of staples the skin staplers can be divided into two types of A and B, the type number are HPF-15 A, HPF-15 B, HPF-25 A, HPF-25 B, HPF-35 A, HPF -35 B, HPF-45 A, and HPF-45 B total 8 types. In order to meet the clinical needs, the stapler can be equipped with a staple remover device, the type of which is: HPF-C. The staple remover should be aseptic after being sterilized with ethylene oxide after packaging.
Disposable skin stapler is used for superficial skin closure of wounds and surgical incisions; The Remover is used to remove staples.
IV Product specifications and technical parameters
Unit: mm
|
Type |
Staple diameter |
Tolerance |
Length of Open staple（L） |
Tolerance |
Length of closed staple (L1) |
Tolerance |
Staple quantity (piece) |
Tolerance
|
staple remover |
|
HPF-15A/B |
φ0.6 |
±0.2 |
13.5 |
±0.5 |
7.3 |
±0.5 |
15 |
±3 |
HPF -C |
|
HPF-25A/B |
25 |
||||||||
|
HPF-35A/B |
35 |
||||||||
|
HPF-45A/B |
45 |

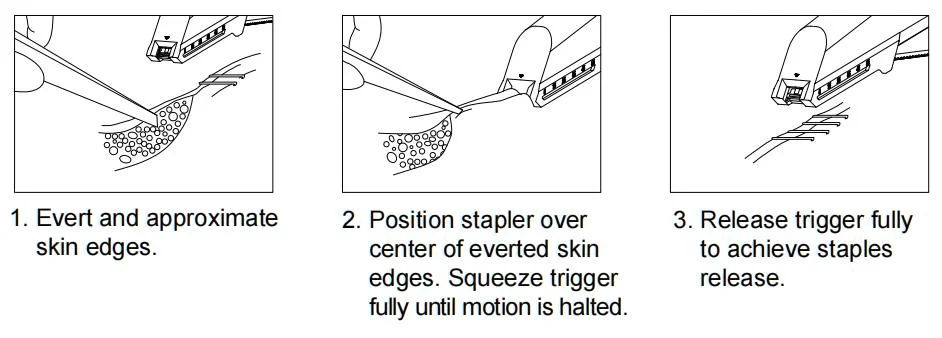

VII using methods
1. Evert and approximate skin edges.
2. Position skin stapler over center of everted skin edges. Close by squeeze trigger fully until motion is halted.
3. Release trigger fully to achieve staples release.
Use of removers
VIII Caution:
1. This product has been sterilized by EO, is provided sterile for single-use only. Do not use if package is opened or damaged. Do not re-sterilize. Discard after use.
2 Make sure the product is within the period of validity (two years after sterilized).It is strictly prohibited to use the product beyond the expiration date.
3 This product should be stored in dry, shady and cool, non-corrosive gases and well-ventilated room, of which the relative humidity is not more than 80%
IX Manufacturer, Address and Telephone number
Manufacturer: Changzhou Haida Medical Equipment Company Ltd.
Address: Sanhekou Industrial Zone, Wujin District, Changzhou City, Jiangsu Province China
Tel: 86-519-88671868 Fax: 86-519-88672999
Website: http://:www.haida-cz.com http://www.surgical-stapler.com
E-mail: haida@haida-cz.com; info@surgical-stapler.com
Post Code: 213115
